Details

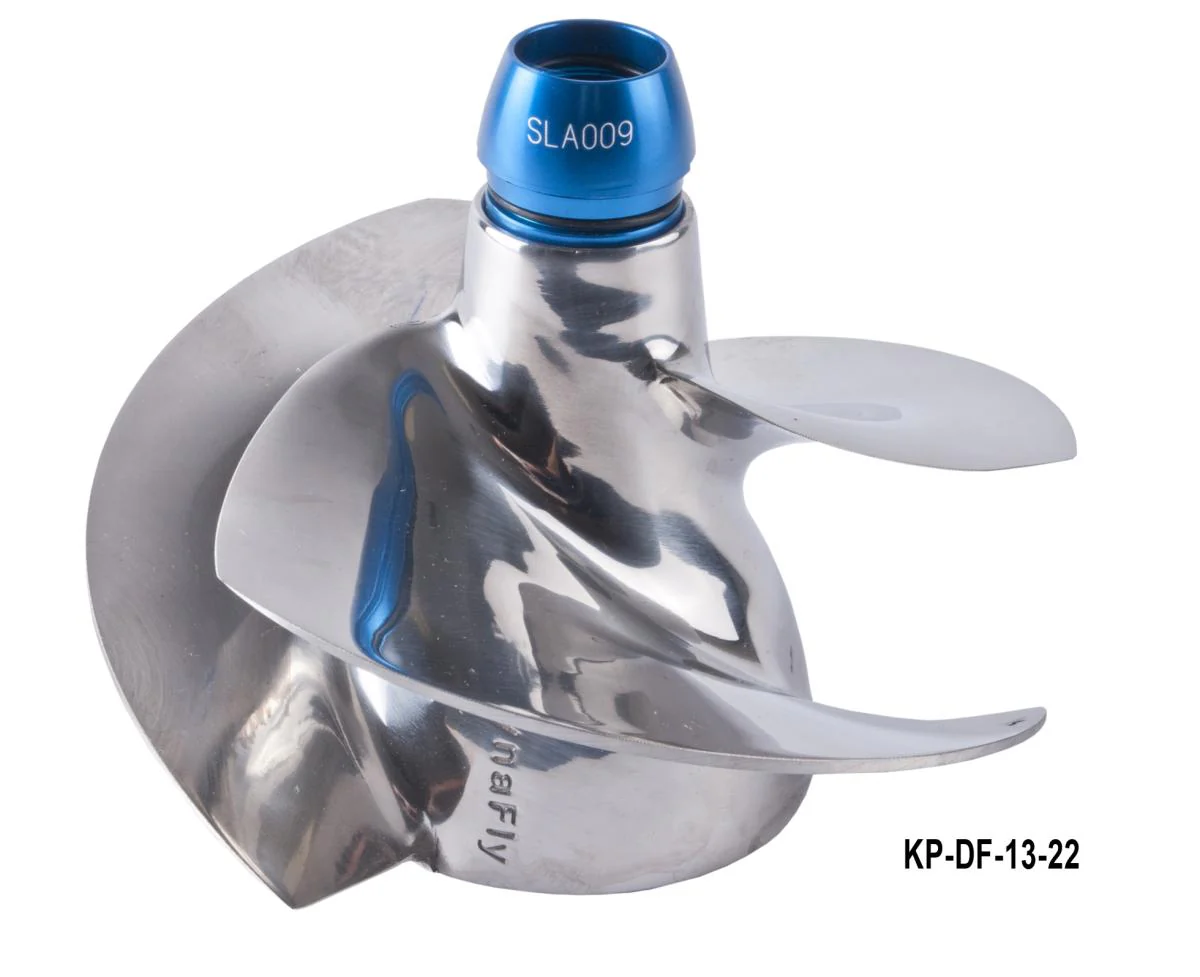

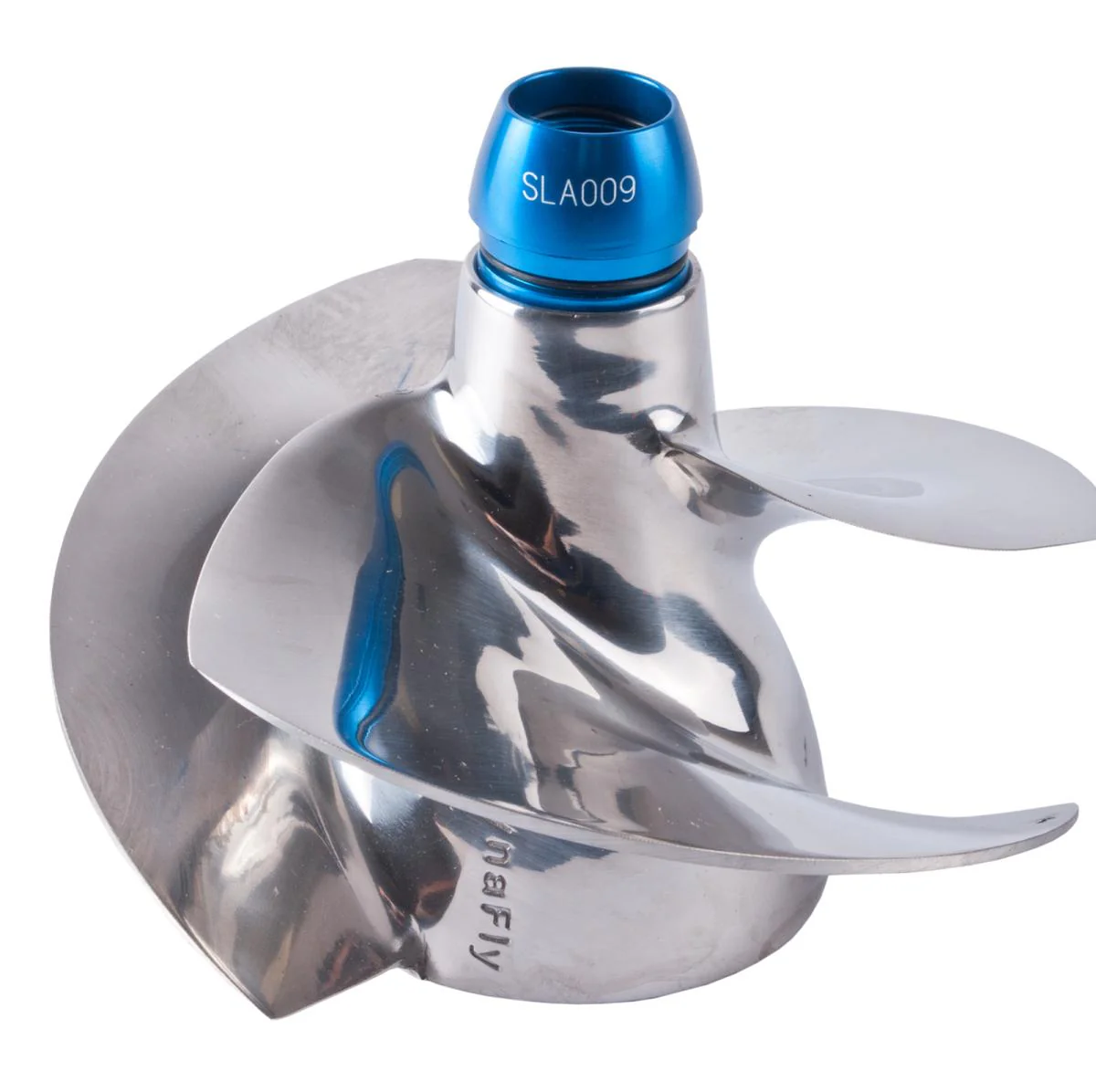

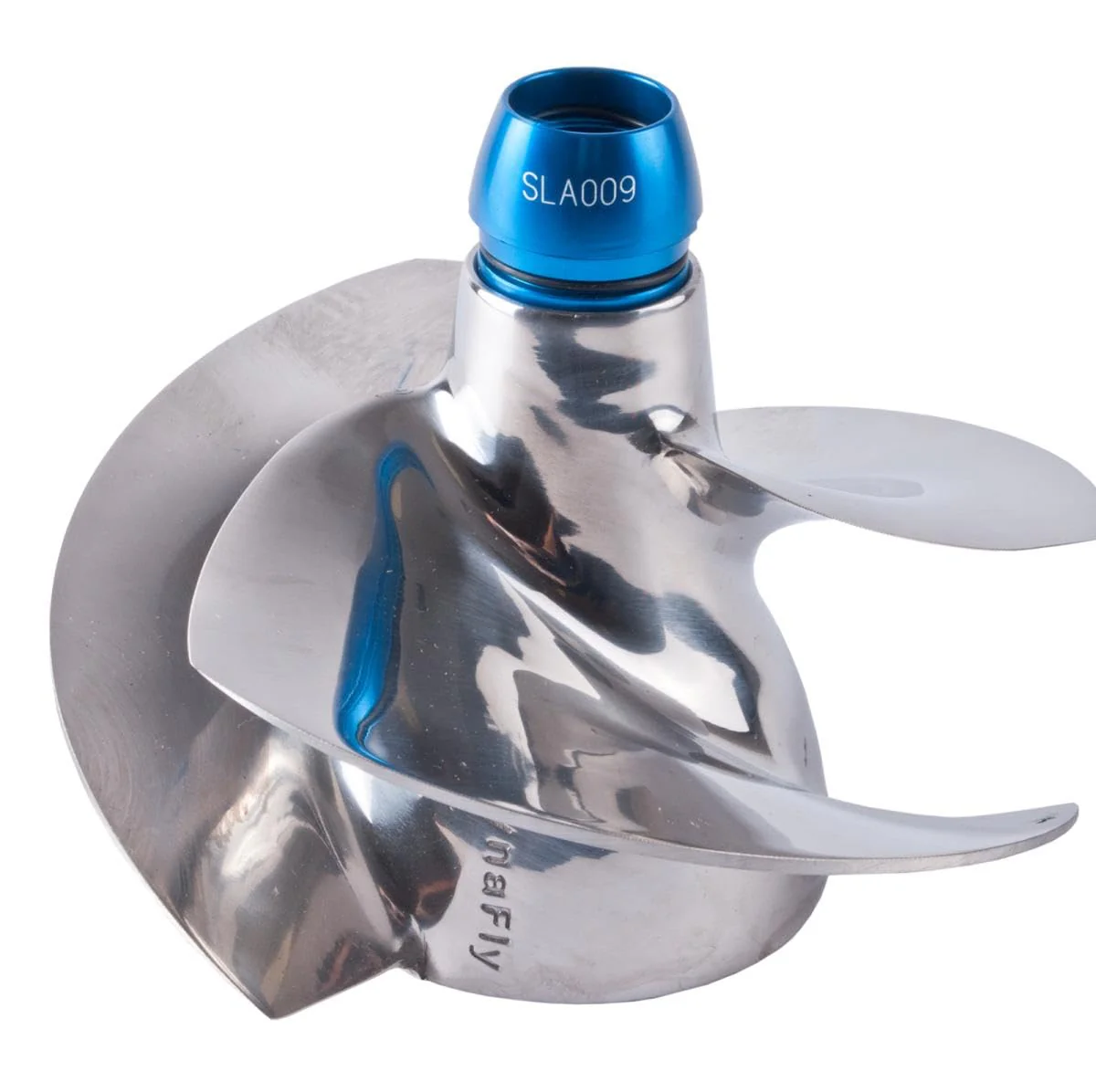

Dynafly Maximum Acceleration Our new impeller is designed to give high compression ratio pumps a stronger acceleration with less cavitation. This impeller is capable of giving your PWC an incredible boost in its performance. The SOLAS product line includes Dynafly impellers for the Kawasaki Ultra 150 pump and the Sea Doo 951 pump. SOLAS also has developed new impellers for other pumps. Please check the application chart for further details.

Applications

2003 800 SX-R
2004 800 SX-R
2005 800 SX-R
2006 800 SX-R
2007 800 SX-R
2008 800 SX-R
2009 800 SX-R
2010 800 SX-R
2011 800 SX-R

Installation

1.)Remove and separate the whole jet pump from the PWC

2.)Remove the trail cone (or cap) from the stator

3.)Hold the rear end of the shaft with a bench vise. Remove the impeller with an impeller wrench. Turning counter clockwise will loosen the impeller.

4.)Visually inspect thread on shaft and impeller for debris or damage. Apply grease or anti-seize on the thread before installation.

5.)Screw the impeller by hand; please be careful of the sharp edge of the impeller. Tighten with the impeller wrench. If the impeller feels too tight or not threaded properly, unscrew the impeller, clean and check the thread.

6.)Assemble the pump and put it back on the PWC.

*this installation guide is suggested for reference only
*please refer to your original service manual or contact your PWC dealer for detail
*guide provided by Solas
*some wrenches are optional parts and are available for purchase on our website

Impeller Series	Wrench	Seal
KA Super Camber (ABC/IJK Series)	WR001	SLA009
KB Super Camber (ABC Series)	WR002	SL002
KC Super Camber (ABC Series)	WR005	Original
KD Super Camber (ABC Series)	WR001	SLA009
KE Super Camber (ABC/IJK Series) Xprop/Concord Series KP Concord/Dynafly Series	WR001	SLA009
KF Super Camber (IJK Series) XProp Series	WR001	SLA009
KG Xprop/Concord Series	WR001	SLA009
KH Dynafly Series	WR001	SL007
KX Concord Series	WR001	SLA009
