Details

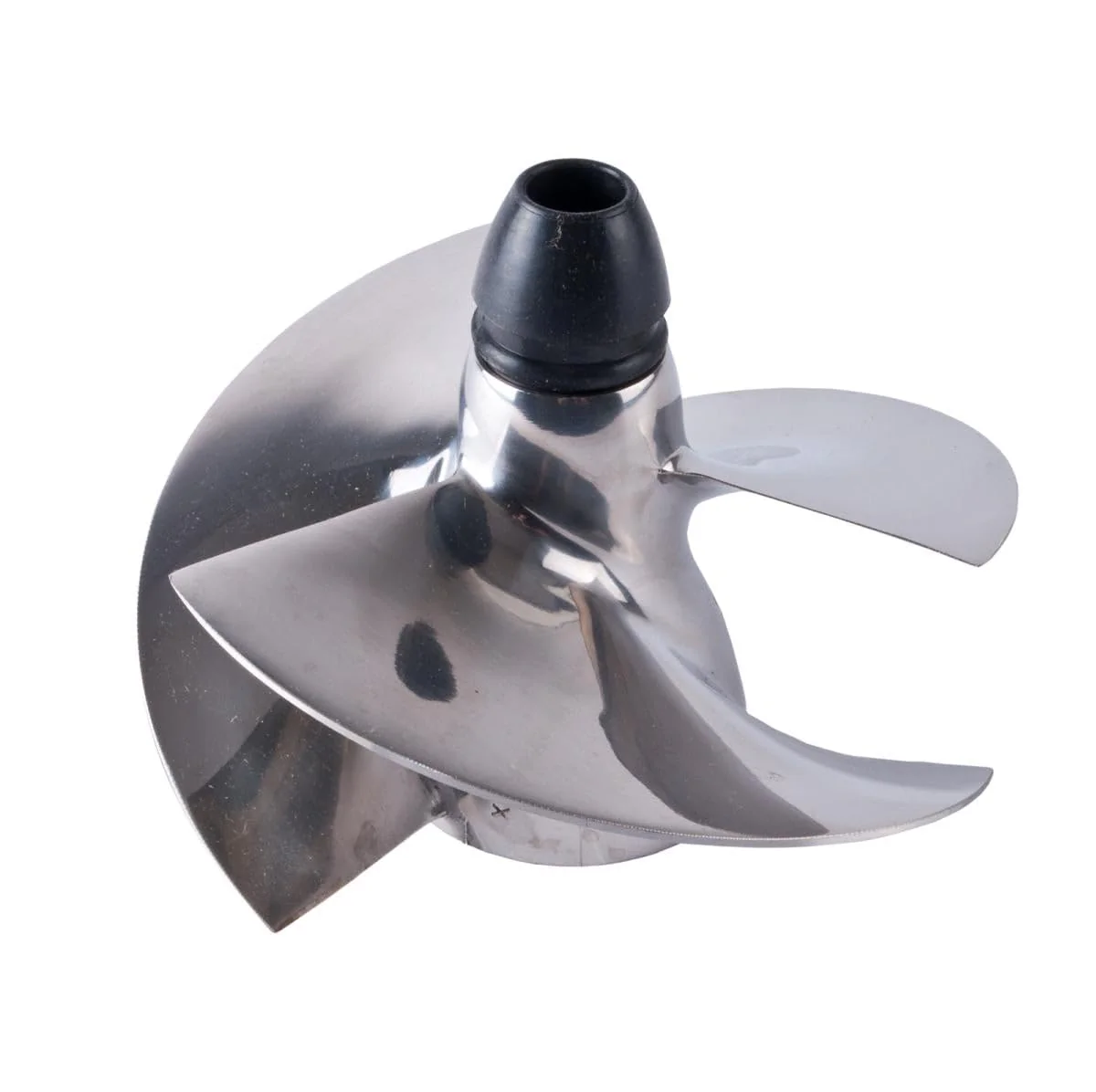

X-prop - High Speed & Ultimate Performance. The SOLAS X prop gives you the most powerful propulsion in the water from an advanced design that incorporates a high compression hub and cambered blades. Enthusiasts looking for speed and acceleration from the novice to the professional will be satisfied using this impeller. You can trust the harsh field testing of the X prop by Team SOLAS.

Applications

1995 XP
1996 XP
1997 XP

1995 SPX
1996 SPX
1997 SPX

1997 GS
1998 GS
1999 GS
2000 GS
2001 GS

1997 GSI
1998 GSI
1999 GSI
2000 GSI
2001 GSI

1996 GTI
1997 GTI
1998 GTI
1999 GTI
2000 GTI

1996 GTS
1997 GTS
1998 GTS
1999 GTS
2000 GTS

1995 HX
1996 HX

Installation

1.)Remove and separate the whole jet pump from the PWC

2.)Remove the trail cone (or cap) from the stator

3.)Hold the rear end of the shaft with a bench vise. Remove the impeller with an impeller wrench. Turning counter clockwise will loosen the impeller.

4.)Visually inspect thread on shaft and impeller for debris or damage. Apply grease or anti-seize on the thread before installation.

5.)Screw the impeller by hand; please be careful of the sharp edge of the impeller. Tighten with the impeller wrench. If the impeller feels too tight or not threaded properly, unscrew the impeller, clean and check the thread.

6.)Assemble the pump and refill O/E pump oil or grease to spec.

*this installation guide is suggested for reference only
*please refer to your original service manual or contact your PWC dealer for detail
*guide provided by Solas
*some wrenches are optional parts and are available for purchase on our website

Impeller Series	Wrench	Seal
SD Super Camber (ABC Series)	WR001	SL007
SD Super Camber (IJK Series)	WR001	SL007
SD, ST Xprop Series	WR001	SL007
SD, SF, ST Concord Series	WR001	SL007
ST Dynafly Series	WR001	SL007
SR Concord Series	WR011	SLA011 (24mm shaft) SLA011A (27mm shaft)
SRZ, SRX Concord Series	WR012	SLA012
