Details

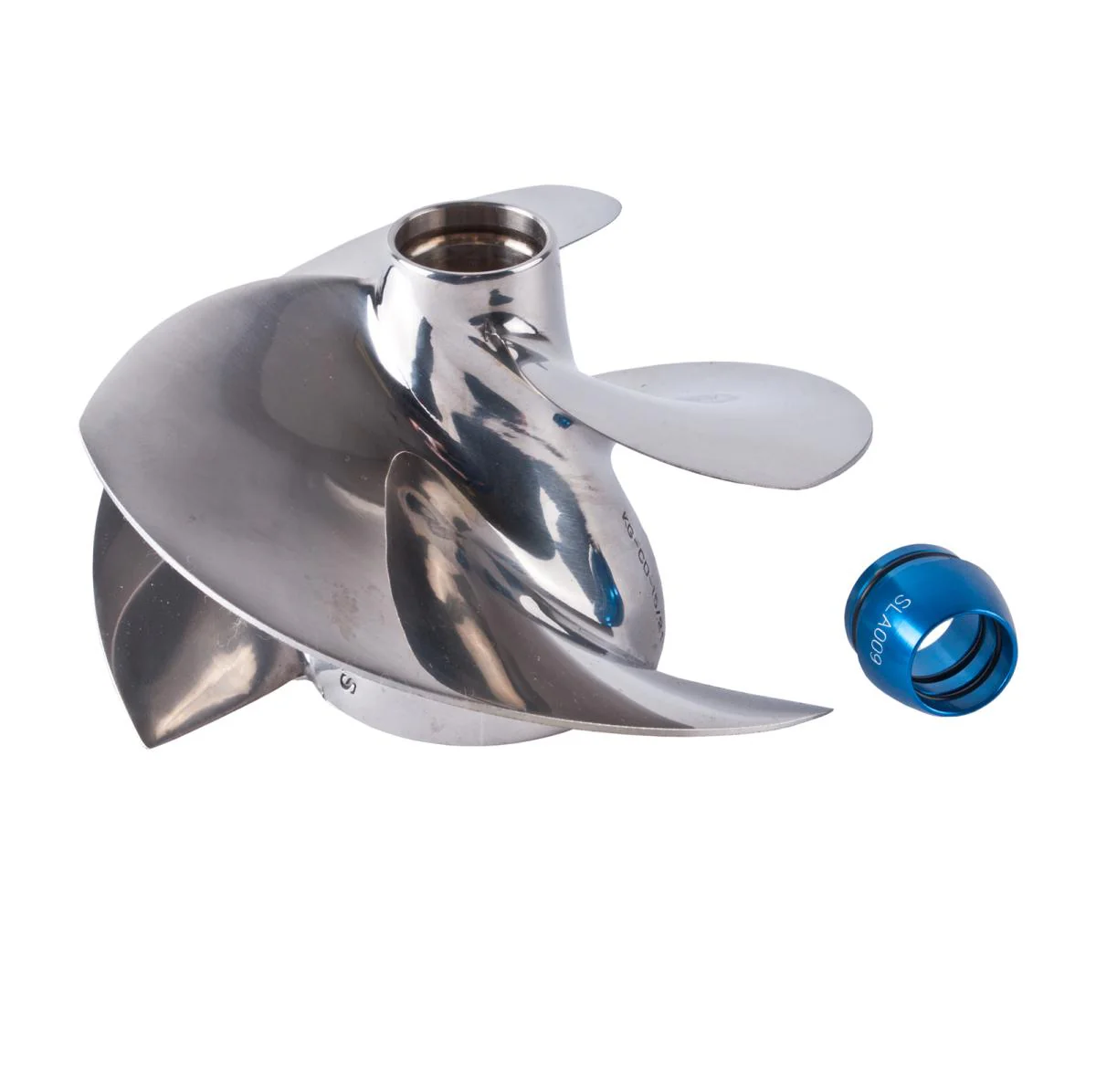

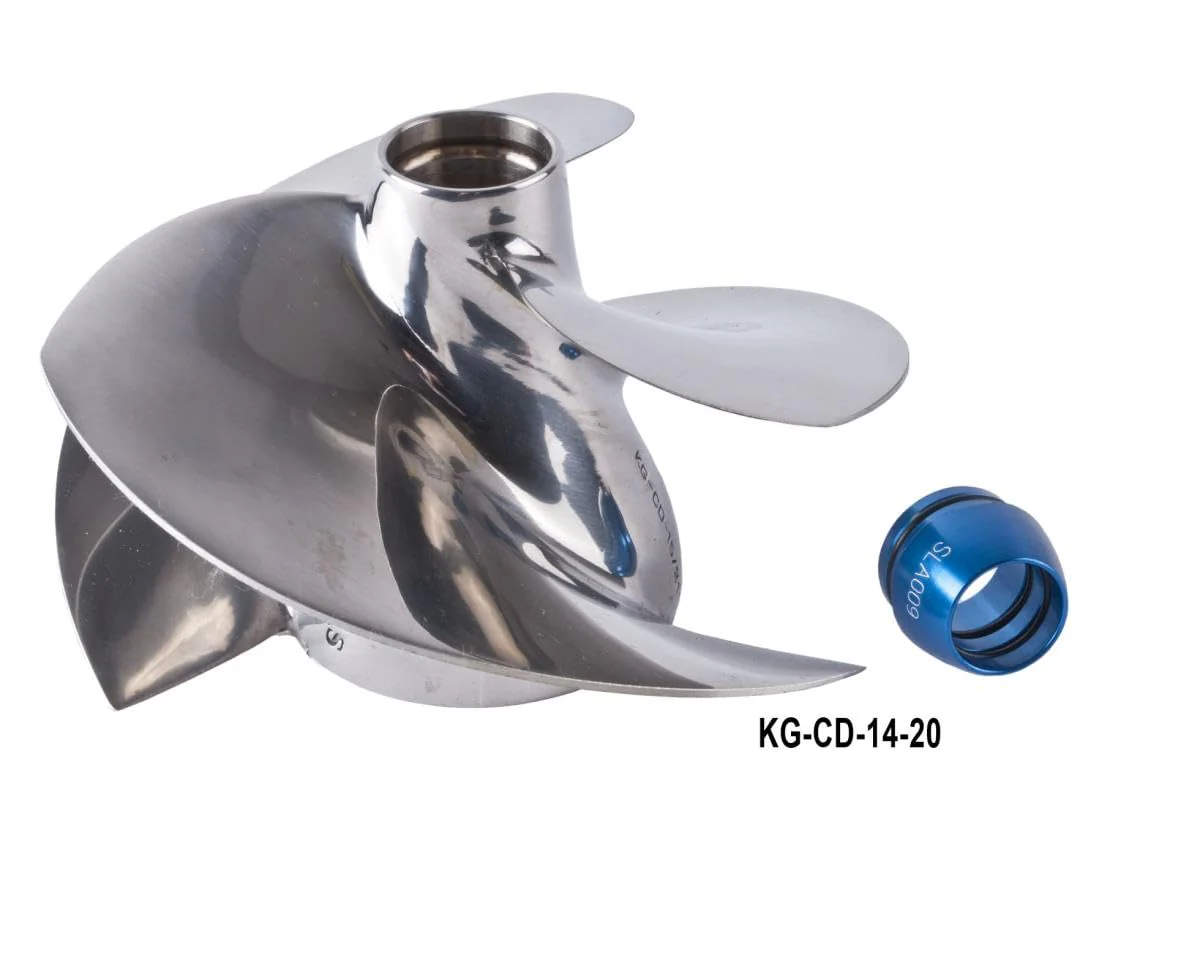

Concord - The Power Torque Series With features like a large blade area and a unique geometric blade design, the SOLAS Concord Impeller delivers remarkable thrust and extraordinary efficiency. As four stroke technologies become mainstream in the PWC world, the Concord design truly enhances the engine characteristics, not only delivering incredible acceleration but excellent top end performance. From water skiing to high speed cruising, this technologically advanced power torque design with its radial leading edge will offer everything you could ask for in an impeller.

Installation

1.)Remove and separate the whole jet pump from the PWC

2.)Remove the trail cone (or cap) from the stator

3.)Hold the rear end of the shaft with a bench vise. Remove the impeller with an impeller wrench. Turning counter clockwise will loosen the impeller.

4.)Visually inspect thread on shaft and impeller for debris or damage. Apply grease or anti-seize on the thread before installation.

5.)Screw the impeller by hand; please be careful of the sharp edge of the impeller. Tighten with the impeller wrench. If the impeller feels too tight or not threaded properly, unscrew the impeller, clean and check the thread.

6.)Assemble the pump and put it back on the PWC.

*this installation guide is suggested for reference only
*please refer to your original service manual or contact your PWC dealer for detail
*guide provided by Solas
*some wrenches are optional parts and are available for purchase on our website

Impeller Series	Wrench	Seal
KA Super Camber (ABC/IJK Series)	WR001	SLA009
KB Super Camber (ABC Series)	WR002	SL002
KC Super Camber (ABC Series)	WR005	Original
KD Super Camber (ABC Series)	WR001	SLA009
KE Super Camber (ABC/IJK Series) Xprop/Concord Series KP Concord/Dynafly Series	WR001	SLA009
KF Super Camber (IJK Series) XProp Series	WR001	SLA009
KG Xprop/Concord Series	WR001	SLA009
KH Dynafly Series	WR001	SL007
KX Concord Series	WR001	SLA009

Application Guide

• 1100 ZXI 1996-2003
• 1100 STX 1997-1998
• 1100 STX DI 2001-2003
• STX-12F 2003-2007

Fitment

• 1996 Kawasaki 1100 ZXI
• 1997 Kawasaki 1100 ZXI
• 1997 Kawasaki 1100 STX
• 1998 Kawasaki 1100 ZXI
• 1998 Kawasaki 1100 STX
• 1999 Kawasaki 1100 ZXI
• 2000 Kawasaki 1100 ZXI
• 2001 Kawasaki 1100 ZXI
• 2001 Kawasaki 1100 STX DI
• 2002 Kawasaki 1100 ZXI
• 2002 Kawasaki 1100 STX DI
• 2003 Kawasaki 1100 ZXI
• 2003 Kawasaki 1100 STX DI
• 2003 Kawasaki STX-12F
• 2004 Kawasaki STX-12F
• 2005 Kawasaki STX-12F
• 2006 Kawasaki STX-12F
• 2007 Kawasaki STX-12F
